Craft Beer Canning System For Microbreweries

In order to meet most microbreweries needs, Shuohua designed SH100 canning system. It only has 9 filling valves and 2 seaming heads but its maximum speed is 100CPM based on 330ml or 12oz cans. Of course, you can start a slow speed at the beginning stage and then speed up. It can help you avoid the situation of purchasing a low speed inline system firstly and then purchasing a rotary canning system.

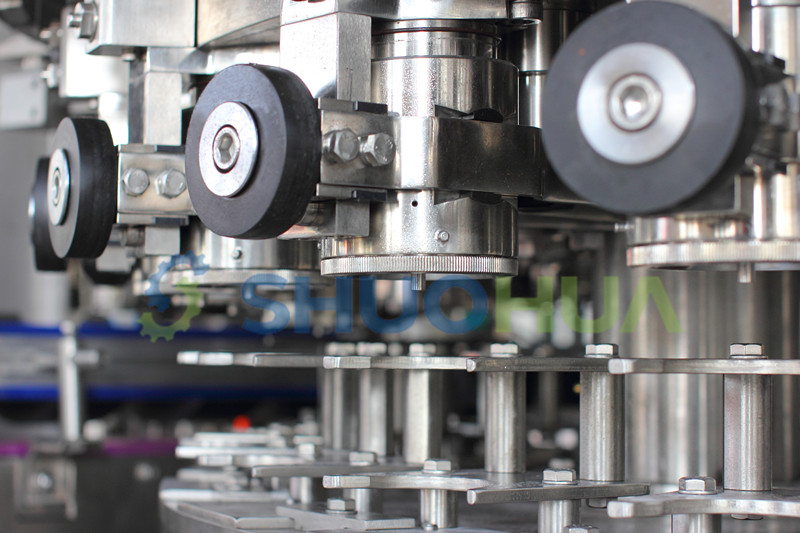

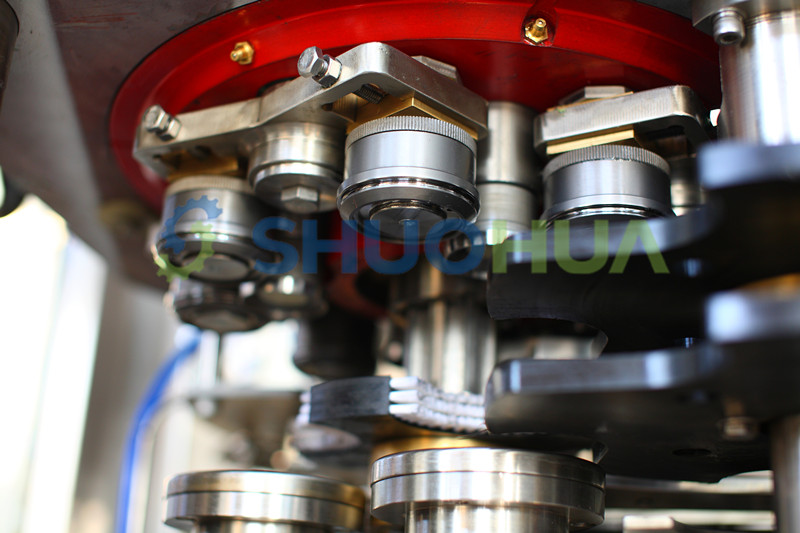

The rotary counter pressure filler-seamer system is suitable for beer & carbonated drink can filling and seaming. It is a true counter pressure filling system with rotary type. Not like in-line filling system, the can and beer is open to the air during the filling, the TPO should be higher. The rotary canning system will seal the can completely during filling and it also has the CO2 pre-purge function before the can entering into the filling position. There is a bubble breaker between the can filler and the seamer and its function is in order to remove the air top the neck can.

The machine adopts advanced mechanical, electrical and pneumatic control technology. Features: working stable, accurate filling level, attractive appearance, low O2 pickup, low beer lost and convenient maintenance.

Welcome to join us on craft beer canning system!
